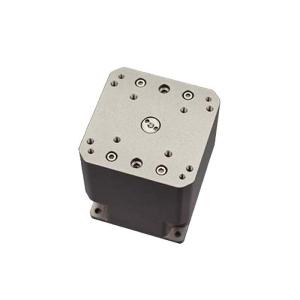

Aluminium Alloy Miniature Precision Motorized Lab Jack Lift Experimental

Brand Name : PDV

Model Number : PT56 - 15

Place of Origin : Beijing, China (Mainland)

MOQ : 1piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 1-2 weeks

Travel(mm) : 15

Lead screw(mm) : 0.3

material : aluminium alloy

guide : Imported guide rail

Maximum speed (mm/s) : 2

Resolution (8 subdivisions)(μm） : 0.188

Contact Now

Experimental Instrument Miniature Precision Lifting Table PT56-15

Product Description:

The micro precision lifting table adopts linear stepping motor driver, high-precision square guide rail guidance, exquisite structure, and realizes ultra-small size, large load, high precision and long life.

The standard installation space can form a spatial multi-dimensional motion control system, which is directly connected with the controller.

Features: high precision and small volume.

Place of use: optical cavity, vacuum environment, small space. Imported high-quality grating ruler with small positioning accuracy.

Model	PT56-15
Travel(mm)	15
Lead screw(mm)	0.3
material	aluminium alloy
surface treatment	Hard oxidation
guide	Imported guide rail
Maximum speed (mm/s)	2
Resolution (8 subdivisions)(μm)	0.188
Repeat positioning accuracy(μm)	2
Drive motor	20 linear stepping motor
Step angle	1.8°
Center load(kg)	1
Feedback signal	——
Positioning accuracy(μm)	——
control mode	open loop

Aluminium Alloy Miniature Precision Motorized Lab Jack Lift Experimental

Product Dimension Map:

Aluminium Alloy Miniature Precision Motorized Lab Jack Lift Experimental
